vLLM with torch.compile: Efficient LLM inference on PyTorch

Hey there, fellow connoisseurs of PyTorch! We know you’re all curious about the magic that is torch.compile, the fast, efficient, and easy-to-use compiler that powers the heart of the vLLM inference pipeline. But trust us, this is no ordinary tool. It’s a work of art, a masterpiece that captures the essence of the best of PyTorch, making it a must-have for any LLM developer.

First and foremost, let’s talk about the importance of special characters. You know, those pesky punctuation marks, emojis, and symbols that can ruin the otherwise perfect flow of your code. But fear not, torch.compile handles them like a pro. It removes them from your text, leaving only the most beautiful and readable code possible. Why would you want to remove special characters from your code

Fast large language model (LLM) inference today requires executing models as efficiently as possible across diverse hardware, workloads, and scale. Efficient execution requires heavily optimized kernels that often require hand-tuning for different models and platforms. torch.compile, PyTorch’s just-in-time (JIT) compiler generates optimized kernels automatically, which makes PyTorch code run significantly faster without requiring developers to manually optimize kernels across all supported hardware platforms.

For vLLM, the de facto open source inference engine for portable and efficient LLM inference, torch.compile isn’t just a performance enhancer. It’s a core component that shifts the responsibility of optimization from model developers to the compiler. Instead of requiring changes to model definitions, optimizations are applied during compilation, enabling cleaner separation of concerns and achieving maximal performance.

In this post, we’ll walk through how torch.compile works, how it’s integrated into vLLM, and how vLLM uses custom compiler passes to maximize performance. We will also discuss ongoing and future work on the torch.compile integration in vLLM to further improve its usability and performance.

What is torch.compile?

torch.compile lets you optimize PyTorch code with minimal effort. Using torch.compile is as simple as applying a decorator to a function or torch.nn.Module. torch.compile automatically captures tensor operations into a computation graph that it then generates optimized code for.

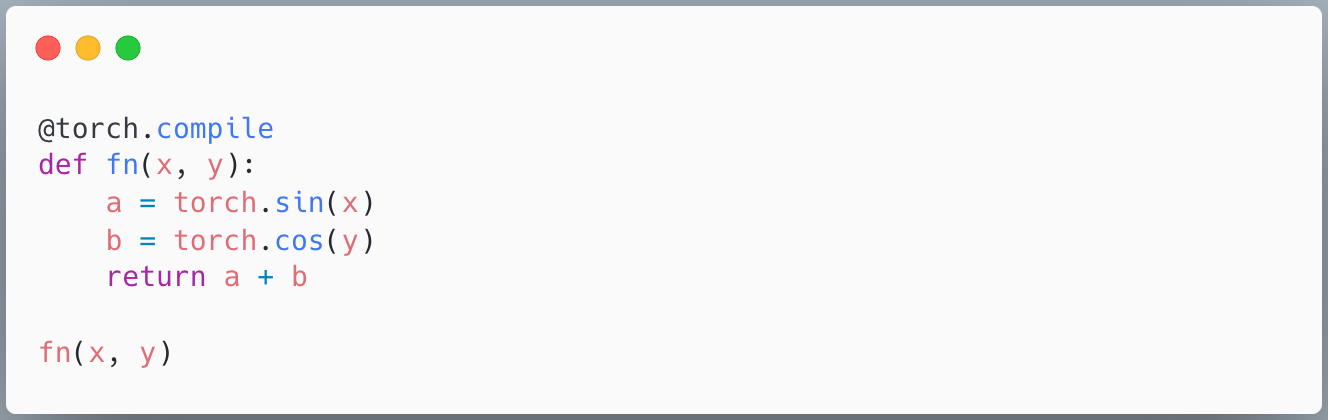

In the following example (Figure 1), torch.compile produces a single fused kernel for all pointwise operations in function fn. It captures and compiles the function just-in-time, potentially recompiling if any of the capture conditions (e.g. input shapes) change.

There are multiple ways to use torch.compile. You can use it as a kernel generator (like in Figure 1), where we compile a function. But you can also apply torch.compile to your full nn.Module model or submodules of it. Depending on the structure of the model and your requirements (for example, compile times), we recommend applying torch.compile in different places.

Why use torch.compile?

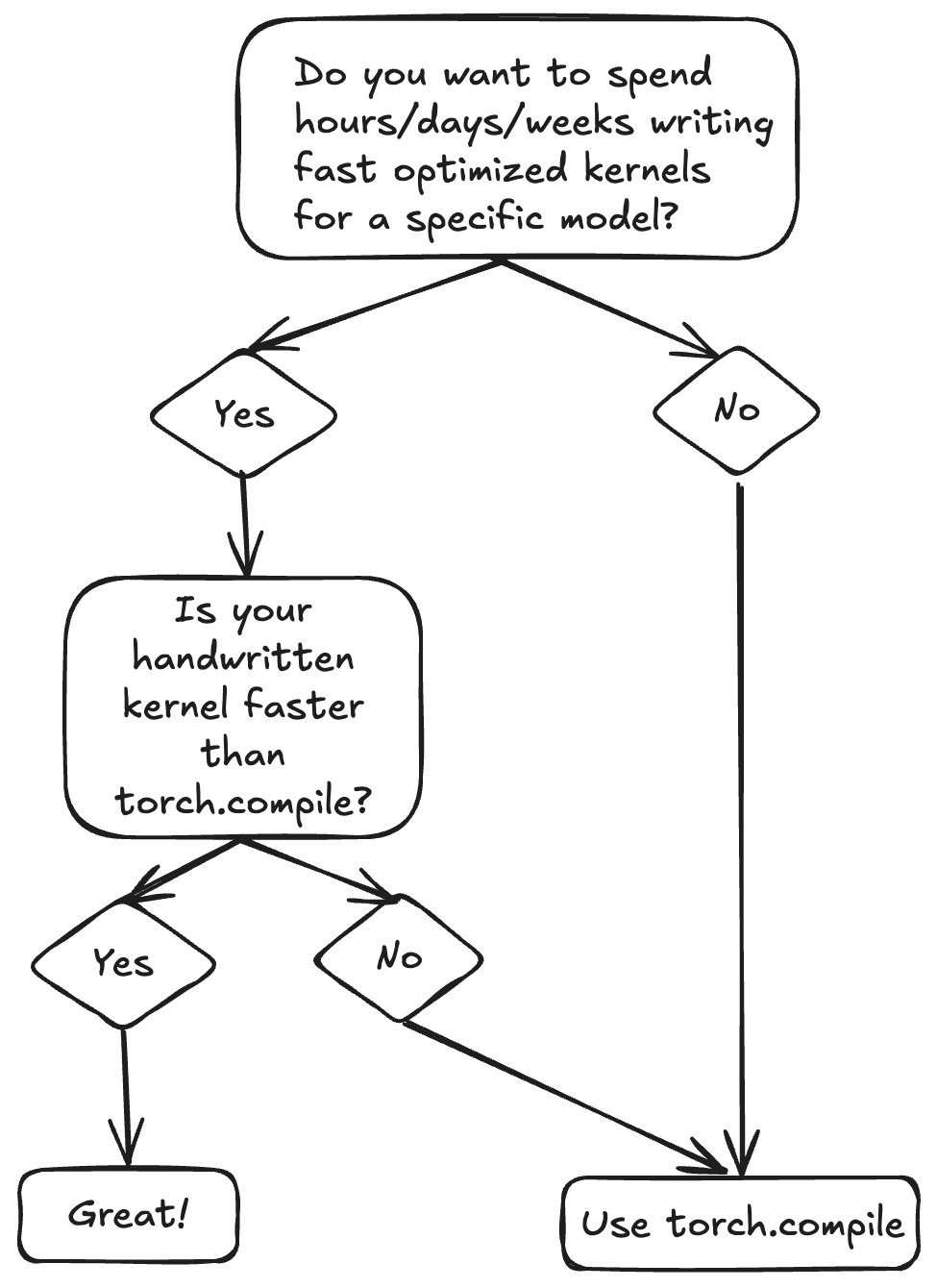

One way of optimizing models is to write custom CPU/CUDA operations that perform the same operations as in the model but faster. Writing custom kernels for every model is time-consuming and requires a deep understanding of performance and hardware (Figure 2). torch.compile gets you a decent amount of the way to peak performance with almost no additional engineering effort. For example, PyTorch’s open source TorchBench benchmark suite shows 1.8-2x geomean speedups on 80+ models.

How torch.compile works

The torch.compile pipeline consists of two major stages: the front end (TorchDynamo) and back end (TorchInductor). We’ll give a brief overview, but for more details, see the official PyTorch 2 paper.

1. Front end (TorchDynamo): Graph capture

torch.compile‘s front end is a custom bytecode interpreter. It traces arbitrary Python functions and extracts straight-line torch.fx graphs that consist only of Tensor operations. One of torch.compile‘s key features that gives it good coverage over all Python code is graph breaks. Whenever torch.compile sees an operation it cannot support, it doesn’t error. Instead, it ends the current graph being traced, runs the operation, and then begins to trace out a new graph. torch.compile sends each graph that gets traced to the back end for optimization.

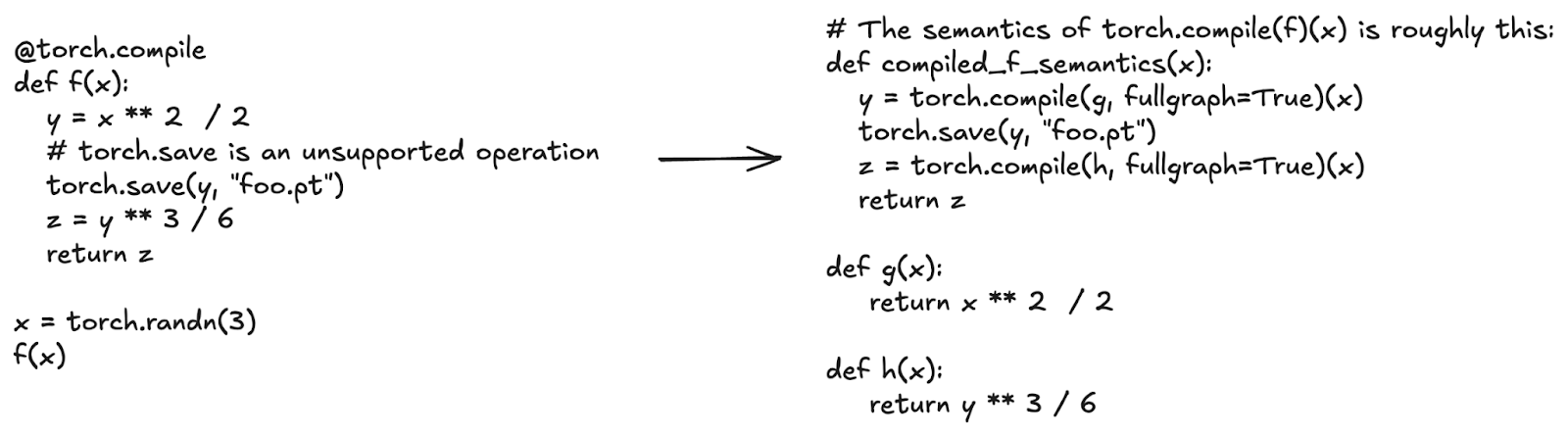

In the following code example  (Figure 3), torch.save is an unsupported operation: torch.compile doesn’t know how to perform disk I/O. Applying torch.compile to the function f is equivalent to applying torch.compile to the region of compute before the call to torch.save and the region after torch.save.

2. Back end (TorchInductor): Optimization and kernel generation

torch.compile‘s back end receives graphs from the front end and optimizes them via graph passes and lowering to optimized C++, Triton, or other kernels. It is able to:

• Fuse pointwise and reduction operations
• Auto-tune kernel configurations like block sizes
• Choose between different back ends for matmul (cuBLAS, Triton, CUTLASS) and perform prologue and epilogue fusion.
• Use CUDA Graphs to cache and replay kernel launches efficiently

CUDA Graphs is one example where having a compiler is helpful. CUDA Graphs reduce launch overhead but require certain assumptions on your code (for example, it must only use CUDA operations, input Tensors must have static memory addresses). torch.compile is able to automatically split graphs at unsupported operations to create smaller graphs that are safe to CUDA Graph as well as automatically manage static input buffers.

vLLM integration

vLLM V1 integrates torch.compile by default for both online and offline inference. You can disable it using -O0 or --enforce-eager, but for most use cases, leaving it on provides performance benefits. See the docs for more details.

Compilation cache

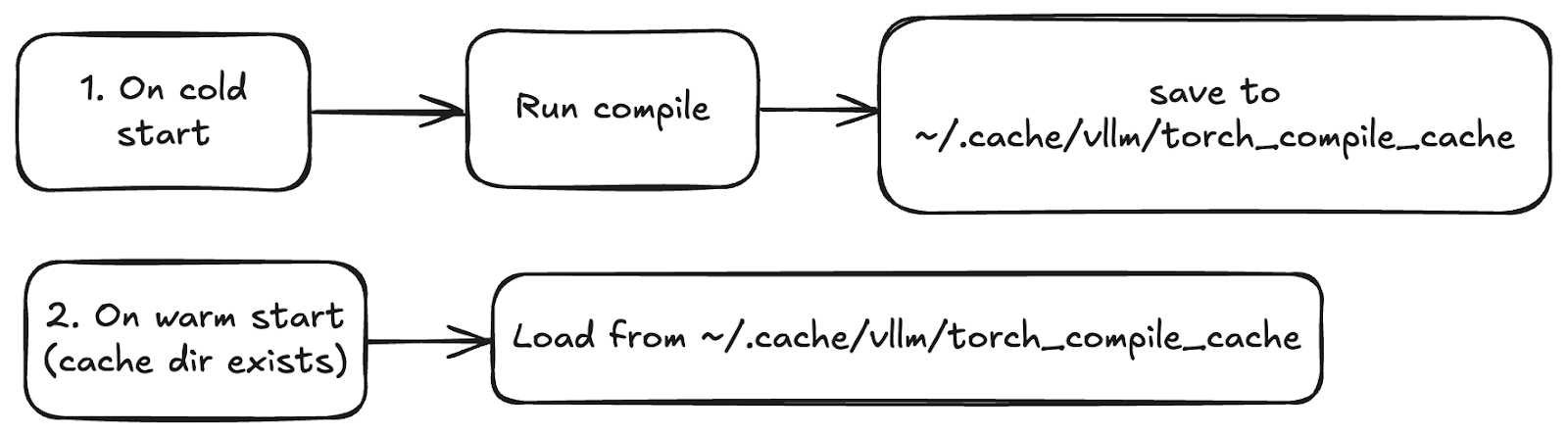

vLLM compiles models during cold start and saves the artifacts (FX graphs, Triton kernels) in a cache directory (by default, ~/.cache/vllm/torch_compile_cache). On warm start, the artifacts are retrieved from the cache. See Figure 4. You can disable the cache via VLLM_DISABLE_COMPILE_CACHE=1 or by deleting the cache directory.

The compiled artifacts and the cache can be reused across machines with the same environment. If you have an autoscaling use case, make sure to generate the cache directory once and share it among instances.

Dynamic batch sizes and specialization

By default, vLLM compiles a single graph with a dynamic batch size that supports all possible batch sizes. This means one artifact can serve variable input sizes. However, specializing for known batch sizes—like 1, 2, or 4—can yield performance improvements.

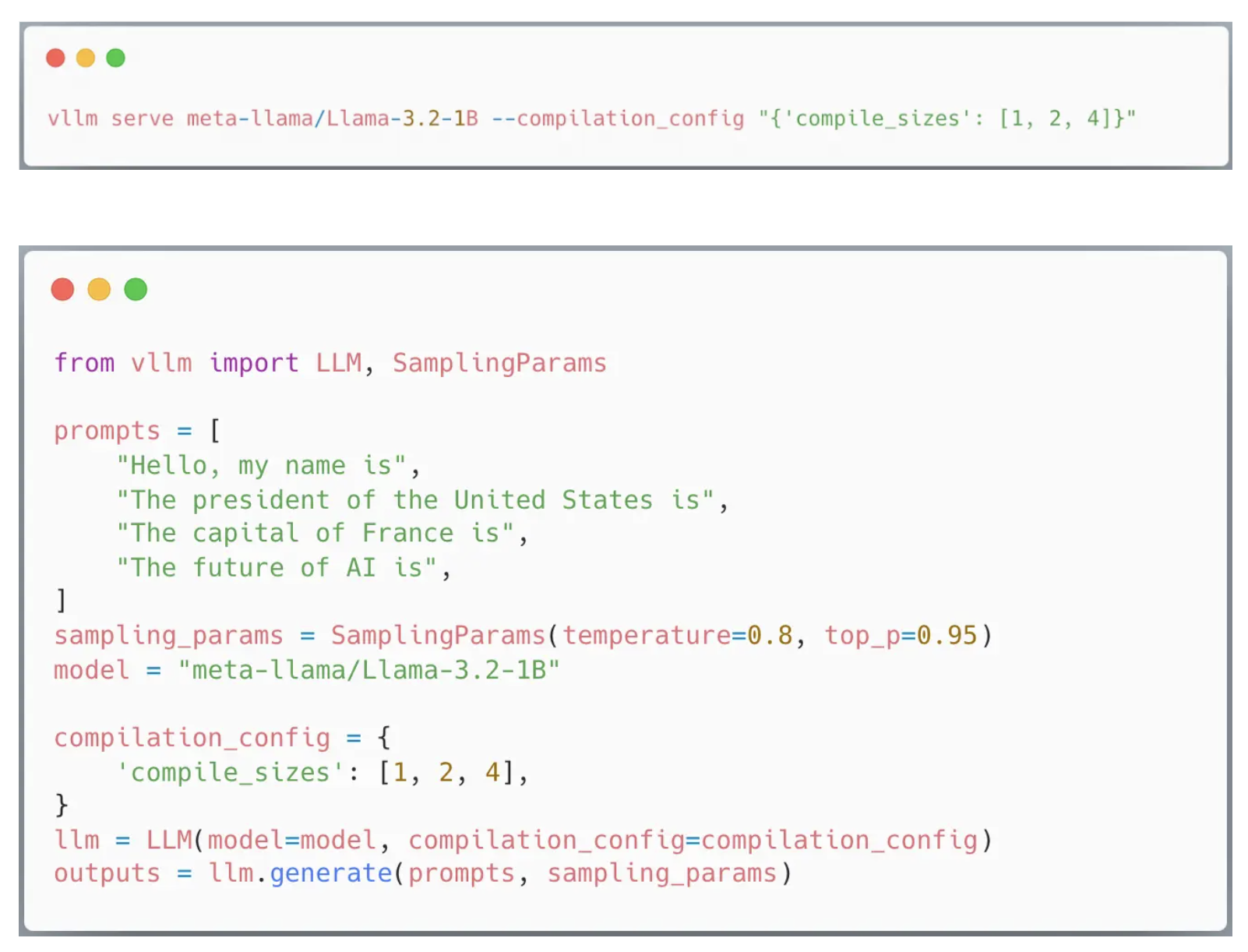

Use compile_sizes: [1, 2, 4] in your config to trigger this specialization. Under the hood, this tells torch.compile to compile for these static sizes and possibly perform more autotuning to select the best kernels. See Figure 5.

Piecewise CUDA Graphs

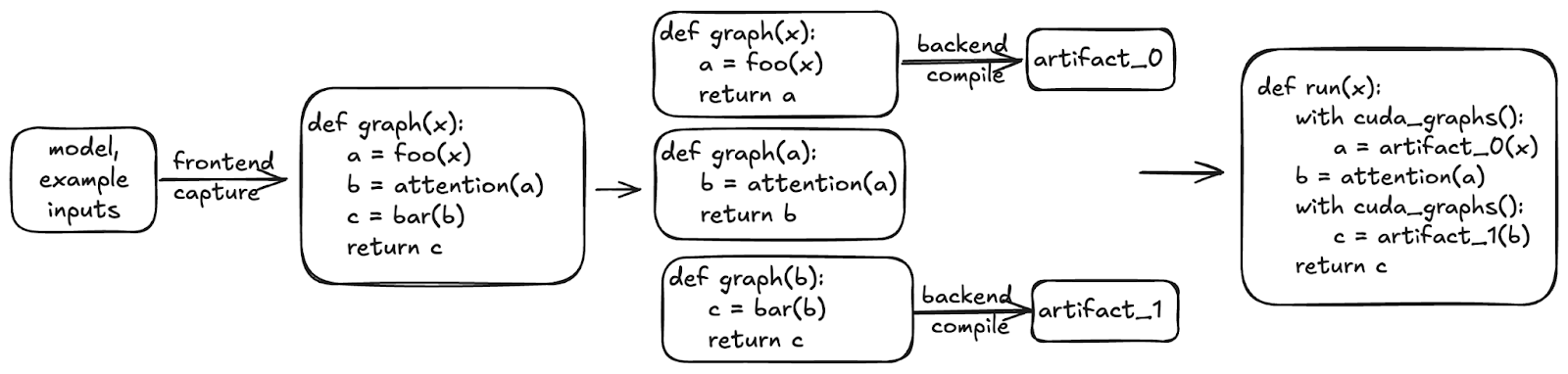

Not all operations are compatible with CUDA Graphs; for example, cascade attention is not. vLLM works around this by breaking the captured graph into CUDA Graph -safe and -unsafe parts and executing them separately, as illustrated in Figure 6. This gives us the performance benefits of CUDA Graphs without losing correctness.

Custom compiler passes in vLLM

While torch.compile includes many built-in optimizations, vLLM adds custom compiler passes that apply additional optimizations to further improve performance.

Why custom passes?

Model authors write declarative, modular code that focuses on correctness and uses clean abstractions, separating higher-level operations into separate submodules and grouping them by layer. However, achieving peak performance often requires breaking those abstractions, like fusing operations across submodules and layers. Rather than rewriting the models, vLLM custom passes rewrite the torch.fx graph.

These passes:

• Fuse memory-bound custom ops like activation functions and quantization
• Add optimizations not present in Inductor (like removing additional no-ops)

Example: SiLU + quantize fusion

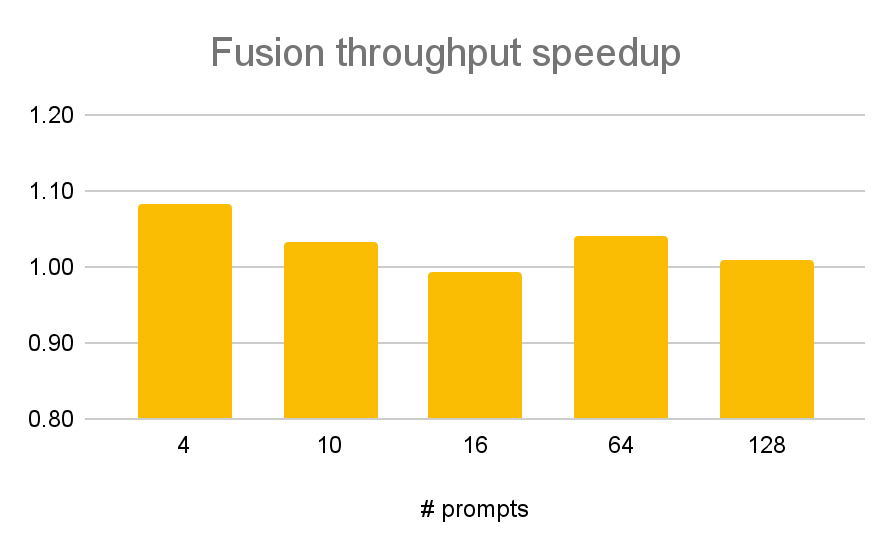

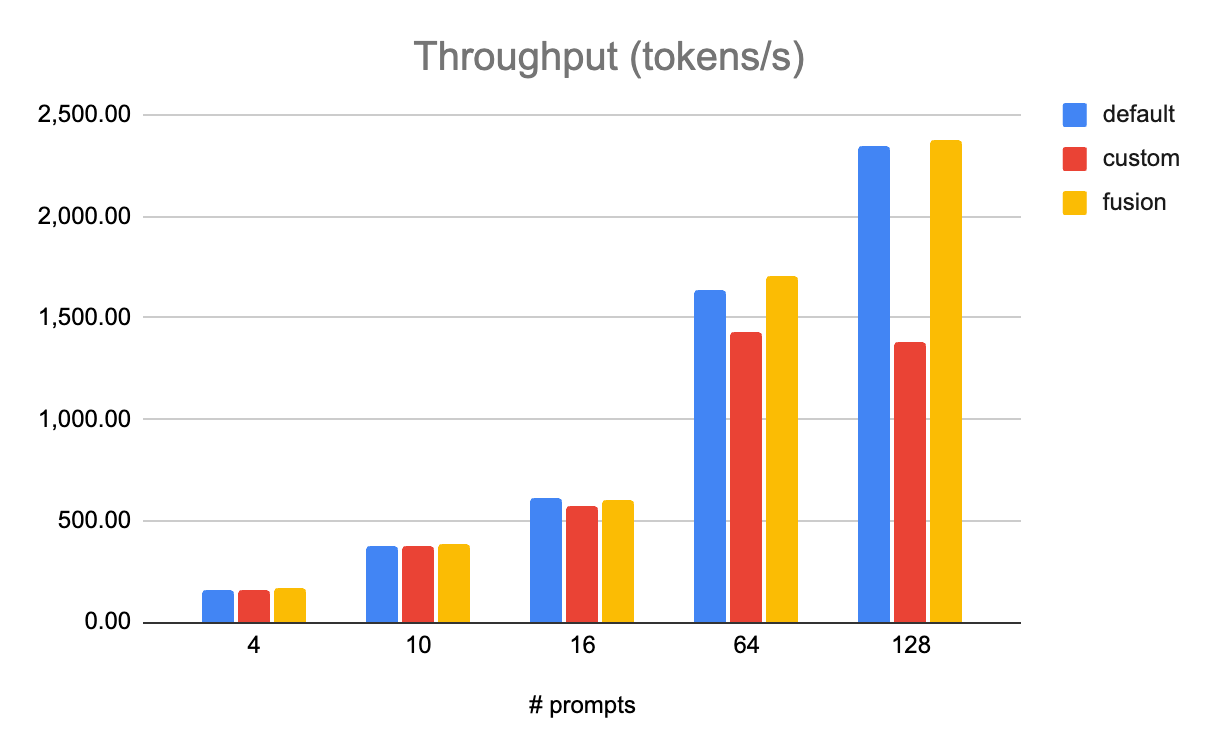

A common pattern in quantized MLPs is SiLU activation followed by a quantized down-projection linear layer. The quantized linear layer consists of a quantization operation on the input, followed by a quantized matrix multiplication. Individually, SiLU and quantization operations are slow and memory-bound. Using the Inductor pattern matcher utility, the ActivationFusionPass custom pass in vLLM replaces them with a single fused kernel, improving throughput by up to 8 percent. See Figures 7 and 8.

Example: Sequence parallelism + async TP

When using tensor parallelism (TP), the linear layer shards the weights and computes incomplete matrix multiplication results, which need to be synchronized across GPUs. When using separate kernels for the compute and communication pieces, we incur communication overhead as the GPUs sit idle while waiting for the network latency of communication results.

Instead, we can overlap computation and communication by using fused GEMM+collective kernels. One example of such kernels are the GEMM+reduce_scatter and all_gather+GEMM kernels. To utilize these kernels, we need to decompose the all_reduce collective operation into a reduce_scatter and an all_gather while also postponing the all_gather until after layernorm to allow it to fuse with the following GEMM.

If we were to implement this kind of optimization in model definitions, we would have to touch every model vLLM supports (there are hundreds of them!). It would be intrusive, break abstractions, increase developer friction, and be unlikely to be accepted into vLLM in the first place. Instead, by implementing the optimization in torch.compile, it is contained to just 2 custom passes and can be turned on using CLI flags, providing better performance for all models supported by vLLM.

Current and upcoming passes

Available today:

• Fusion passes:
  • RMSNorm + Quant (FP8) fusion
  • SiLU-Mul + Quant (FP8) fusion
  • Attention + Quant (FP8) fusion (up to 7% improvement)
  • AllReduce + RMSNorm fusion (up to 15% improvement)
  • AllReduce + RMSNorm + Quant (FP8) fusion (up to 8% improvement)
  • AllReduce + RMSNorm + Quant (FP4) fusion (up to 10% improvement)
  • Sequence Parallelism & Async TP (up to 10% improvement)
• Other passes:
  • No-op elimination: Eliminates or simplifies redundant reshape operations
  • Fix functionalization: Nanually reinplaces auto_functionalized operations to avoid redundant copies and memory use

Coming soon:

• Attention + Quant (FP4) fusion: #22703
• SiLU-Mul + Quant (FP4) fusion: #22448

Passes can be added via the PostGradPassManager, CLI (--compilation-config), or by specifying a config object in offline mode. This allows users of vLLM to perform custom graph transformations (kernel substitution or something else) required by their use case without modifying vLLM source code.

Future work

We’ve come very far on the vLLM-torch.compile integration. Here are some areas that we’re focusing on in the next six months.

Improving stability

The vLLM-torch.compile integration uses many private (begin with an underscore) torch.compile APIs and relies on unstable implementation details. We did this because using the public torch.compile API wasn’t sufficient to fulfill our requirements—vLLM wants fast serving performance and no recompilations during model serving. This has led to issues like weird caching issues, or needing to disable vLLM’s torch.compile cache for certain models. The PyTorch compiler team is working on upstreaming vLLM (and general inference) related features from vLLM to torch.compile and migrating vLLM to using more stable APIs. A lot of these features are already present in torch 2.8, which is coming to vLLM soon!

Improving startup time

We’ve heard that startup time is a huge pain point with vLLM torch.compile and CUDA Graphs, especially in the autoscaling setting where one dynamically spins up new machines according to demand. We plan to significantly reduce both cold (first time) and warm (second time and on) startup for vLLM, especially as related to Dynamo and Inductor compilation. Follow the startup-ux label on GitHub or join the #feat-startup-ux channel on vLLM Slack to stay updated on the progress.

An important UX improvement is the planned revamp of the -O command-line flag. By specifying -O<n> on the vLLM CLI (where n is an integer between 0-3), users will get easier direct control over trading off startup time for performance. While -O0 will perform almost no optimizations and spin up as quickly as possible, -O3 will take much longer but provide the best possible performance.

Custom pass improvements

We are planning on making a few broad improvements to the custom pass mechanism to increase their flexibility and make them easier to write, as well as improve the final performance of applied optimizations:

• Compile multiple dynamic shape torch.fx graphs. This would let us specialize the forward pass graph depending on the size of the batch without compiling for each static size separately. More information in the RFC.
• Enable matching torch implementations of custom ops. Currently, custom ops (rms_norm, quant, etc.) need to be enabled to allow pattern matching and fusing them, but there might be custom ops that don’t end up getting fused (especially for quant, which happens 4 times per layer). Those ops are slower than their torch equivalents, which reduces the benefits of fusion. We have a working prototype that pattern-matches torch implementations of custom ops, promising further performance improvements.

Experimental torch.compile back-end integration

We are also exploring an experimental MPK/Mirage compiler integration. MPK is a precision-scheduling megakernel compiler, meaning it produces a single kernel for the whole model forward pass, which can further reduce CPU overheads and eliminate kernel launch overhead as compared to CUDA Graphs. More information on the proposed integration in the RFC.

Other performance improvements

The goal of vLLM’s torch.compile integration is provide good baseline performance to avoid needing to write and maintain a significant amount of custom kernels. We will continue to maintain and improve performance. Some highlights of work-in-progress work includes:

• Improved FlexAttention support. FlexAttention is an API that allows the use of different attention variants without needing to write a custom attention kernel for each. Under the hood, it uses torch.compile to produce a custom triton template.
• Full CUDA Graphs support for Flash Attention v2 and FlashInfer. Full CUDAGraphs have less overhead than piecewise CUDA Graphs and should improve performance in those high-overhead settings.

Conclusion

torch.compile provides a powerful and accessible way to accelerate PyTorch models. In vLLM, it’s a core part of the inference pipeline. Combined with caching, dynamic shape support, CUDA Graphs, and custom passes, it enables efficient, scalable LLM serving across any environment.

As the compiler stack matures and support for new hardware expands, torch.compile and vLLM will continue to push the boundaries of inference performance—while keeping model development clean and modular.

Read more about torch.compile in the PyTorch documentation and the vLLM documentation, and join the #sig-torch-compile channel on vLLM Slack to ask questions, share feedback, and contribute your own custom passes!
