Multicluster authentication with Ansible Automation Platform

This article provides a step-by-step guide to implement multicluster authentication between Red Hat Ansible Automation Platform and Red Hat Advanced Cluster Management. This integration, illustrated in Figure 1, enables Ansible Automation Platform to securely authenticate with multiple managed clusters through the centralized authentication capabilities of Red Hat Advanced Cluster Management.

The goal is to eliminate credential proliferation in Ansible Automation Platform by leveraging the ManagedServiceAccount and ClusterProxy features of Red Hat Advanced Cluster Management for secure, token-based authentication across multiple clusters. This integration addresses the critical security and operational challenge of credential proliferation. Instead of managing separate credentials for each managed cluster in Ansible Automation Platform, this solution provides:

1. **Centralized authentication**:
All authentication flows go through the Red Hat Advanced Cluster Management hub cluster, ensuring that credentials are managed in a single, centralized location.
2. **Network security**:
API access to managed clusters is routed through Cluster Proxy, providing network security to protect against unauthorized access.
3. **Dynamic token management**:
ManagedServiceAccount provides on-demand tokens without storing long-lived credentials, eliminating the need to manage separate credentials for each managed cluster.
4. **Reduced attack surface**:
By eliminating the need to store cluster credentials in Ansible Automation Platform, this integration reduces the

This article provides a step-by-step guide to implement multicluster authentication between Red Hat Ansible Automation Platform and Red Hat Advanced Cluster Management. This integration, illustrated in Figure 1, enables Ansible Automation Platform to securely authenticate with multiple managed clusters through the centralized authentication capabilities of Red Hat Advanced Cluster Management.

The goal is to eliminate credential proliferation in Ansible Automation Platform by leveraging the ManagedServiceAccount and ClusterProxy features of Red Hat Advanced Cluster Management for secure, token-based authentication across multiple clusters.

Value proposition

This integration addresses the critical security and operational challenge of credential proliferation. Instead of managing separate credentials for each managed cluster in Ansible Automation Platform, this solution provides:

• Centralized authentication: All authentication flows go through the Red Hat Advanced Cluster Management hub cluster
• Network security: API access to managed clusters is routed through Cluster Proxy
• Dynamic token management: ManagedServiceAccount provides on-demand tokens without storing long-lived credentials
• Reduced attack surface: Eliminates the need to store cluster credentials in Ansible Automation Platform

Prerequisites

You must have these components installed and configured:

• Red Hat Advanced Cluster Management 2.9 or greater
• Red Hat Ansible Automation Platform
• ManagedServiceAccount and Cluster Proxy features enabled (default as of Red Hat Advanced Cluster Management 2.9)

Verify components

In Red Hat Advanced Cluster Management 2.13, both ManagedServiceAccount and Cluster Proxy features are enabled by default. Verify their status:

oc get multiclusterengine multiclusterengine -o yaml

Look for the following components in the spec.overrides.components section:

• managedserviceaccount must be enabled
• cluster-proxy-addon must be enabled

Get cluster proxy URL

Get the cluster proxy URL that Ansible Automation Platform will use for authentication:

oc get route -n multicluster-engine cluster-proxy-addon-user
NAME                       HOST/PORT
cluster-proxy-addon-user   cluster-proxy-user.apps.ocp4.example.com     cluster-proxy-addon-user   user-port

Create a hub ServiceAccount for multicluster authentication

Create a ServiceAccount on the cluster hub that Ansible Automation Platform can use to create ManagedServiceAccounts and retrieve authentication tokens:

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: aap-integration-serviceaccount-role
rules:
  - verbs:
      - get
      - list
      - watch
    apiGroups:
      - ''
    resources:
      - secrets
  - verbs:
      - get
      - list
      - watch
      - create
      - update
      - patch
      - delete
    apiGroups:
      - authentication.open-cluster-management.io
      - work.open-cluster-management.io
      - addon.open-cluster-management.io
    resources:
      - managedserviceaccounts
      - manifestworks
      - managedclusteraddons
      - managedserviceaccounts/finalizers
      - manifestworks/finalizers
      - managedclusteraddons/finalizers
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: aap-integration-serviceaccount-rb
subjects:
  - kind: ServiceAccount
    name: aap-integration-serviceaccount
    namespace: aap
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: aap-integration-serviceaccount-role
---
kind: ServiceAccount
apiVersion: v1
metadata:
  name: aap-integration-serviceaccount
  namespace: aap

Generate authentication token

For OpenShift 4.11 and above, create the authentication token manually:

oc create token aap-integration-serviceaccount -n aap

For long-lived tokens (1 year):

oc create token aap-integration-serviceaccount -n aap --duration=8760h

Configure authentication credentials

Store the authentication credentials for Ansible Automation Platform to authenticate with Red Hat Advanced Cluster Management. This example uses Ansible Vault, but you can also use Ansible Automation Platform credentials or any other method that provides access to the required values.

Using Ansible Vault

Store the authentication credentials securely in an Ansible vault. First, create a directory called vault:

$ mkdir vault

In the directory, create a file called vault.yaml with the authentication credentials in it:

$ cat vault/vault.yaml
hub_url: https://cluster-proxy-user.apps.ocp4.example.com
token_acm: yJhbGciOiJSUzI1NXXXXXXXXXXXXXXXXXXXX

Use the ansible-vault command to encrypt the file:

$ ansible-vault encrypt vault/vault.yaml

Using custom credential types

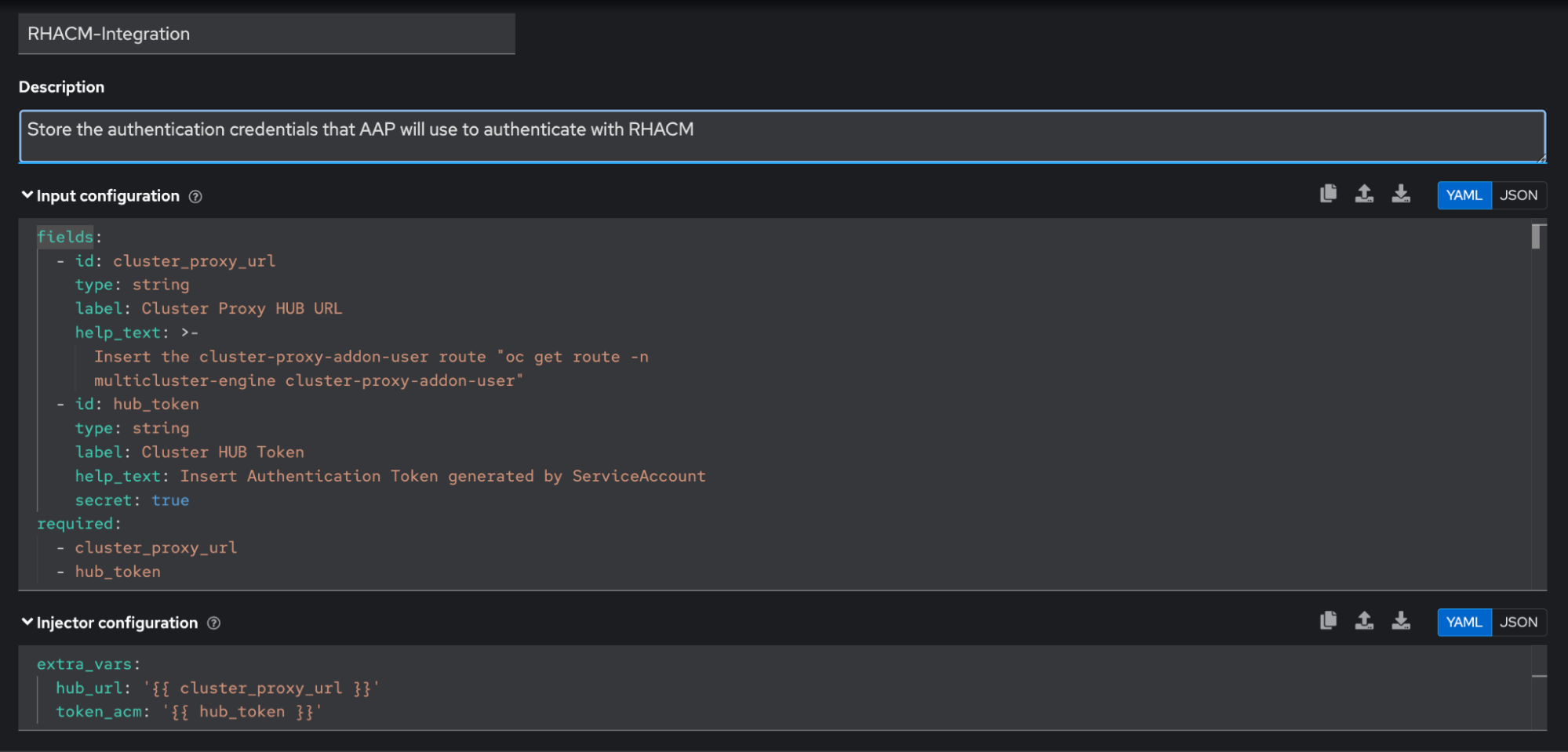

Create a custom credential type in Ansible Automation Platform to securely store and manage Red Hat Advanced Cluster Management authentication credentials. This approach provides a structured way to handle multicluster authentication credentials with proper validation and help text.

The custom credential type interface allows you to define specific fields for cluster proxy URL and the hub token, providing an easy way to manage authentication credentials within Ansible Automation Platform.

For this example, the input configuration field contains:

fields:
  - id: cluster_proxy_url
    type: string
    label: Cluster Proxy HUB URL
    help_text: >-
      Insert the cluster-proxy-addon-user route "oc get route -n
      multicluster-engine cluster-proxy-addon-user"
  - id: hub_token
    type: string
    label: Cluster HUB Token
    help_text: Insert Authentication Token generated by ServiceAccount
    secret: true
required:
  - cluster_proxy_url
  - hub_token

The injector configuration:

extra_vars:
  hub_url: '{{ cluster_proxy_url }}'
  token_acm: '{{ hub_token }}'

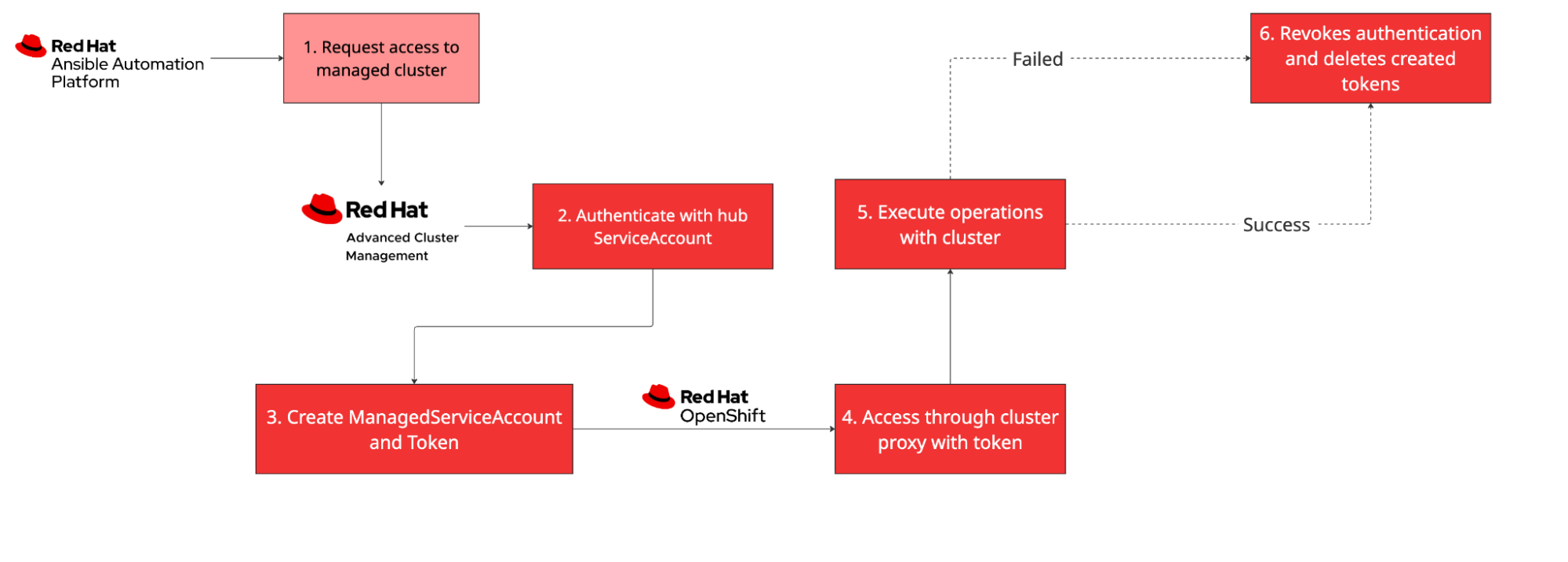

Authentication flow

The multicluster authentication process follows a secure, step-by-step flow that ensures proper authentication and authorization across all managed clusters. Figure 3 illustrates how Ansible Automation Platform interacts with RHACM to securely access managed clusters through a centralized authentication mechanism that eliminates credential proliferation.

In detail:

1. Ansible Automation Platform request: Playbook requests access to a managed cluster.
2. HUB authentication: Ansible Automation Platform authenticates with Red Hat Advanced Cluster Management hub using the configured ServiceAccount.
3. Token generation: Red Hat Advanced Cluster Management creates a ManagedServiceAccount on the target cluster and generates a token.
4. Cluster proxy: Ansible Automation Platform accesses the managed cluster through the cluster proxy using the generated token.
5. Secure communication: All communication is routed through the hub cluster.
6. Cleanup: ManagedServiceAccount is deleted up after operations complete and token is revoked.

Using multicluster authentication in Ansible Automation Platform playbooks

Here’s an example of how to use the multicluster authentication in your Ansible Automation Platform playbooks:

---
- name: Multi-Cluster Operations with RHACM Authentication
  hosts: localhost
  vars_files:
    - ../vault/vault.yaml  # Contains hub_url and token_acm
  vars:
    target_clusters: ["cluster1", "cluster2", "cluster3"] # Name of ManagedCluster
  tasks:
    - block:
        - name: Create ManagedClusterAddOn
          kubernetes.core.k8s:
            definition: |
              apiVersion: addon.open-cluster-management.io/v1alpha1
              kind: ManagedClusterAddOn
              metadata:
                name: managed-serviceaccount
                namespace: "{{ item }}"
              spec:
                installNamespace: open-cluster-management-agent-addon
            host: "{{ hub_url }}/local-cluster"
            api_key: "{{ token_acm }}"
            validate_certs: false
          with_items: "{{ target_clusters }}"
        - name: Create ManagedServiceAccount
          kubernetes.core.k8s:
            definition: |
              apiVersion: authentication.open-cluster-management.io/v1beta1
              kind: ManagedServiceAccount
              metadata:
                name: aap-integration-serviceaccount
                namespace: "{{ item }}"
              spec:
                rotation:
                  enabled: true
                  validity: 8640h0m0s
            host: "{{ hub_url }}/local-cluster"
            api_key: "{{ token_acm }}"
            validate_certs: false
          with_items: "{{ target_clusters }}"
        - name: Get UID of ManagedServiceAccount
          kubernetes.core.k8s_info:
            api_version: authentication.open-cluster-management.io/v1beta1
            kind: ManagedServiceAccount
            namespace: "{{ item }}"
            name: aap-integration-serviceaccount
            host: "{{ hub_url }}/local-cluster"
            api_key: "{{ token_acm }}"
            validate_certs: false
          with_items: "{{ target_clusters }}"
          register: msa_info
        - name: Create ManifestWork
          kubernetes.core.k8s:
            definition: |
              apiVersion: work.open-cluster-management.io/v1
              kind: ManifestWork
              metadata:
                name: aap-integration-serviceaccount
                namespace: "{{ item }}"
              spec:
                workload:
                  manifests:
                    - apiVersion: rbac.authorization.k8s.io/v1
                      kind: ClusterRoleBinding
                      metadata:
                        name: cluster-admin-app
                      roleRef:
                        apiGroup: rbac.authorization.k8s.io
                        kind: ClusterRole
                        name: cluster-admin
                      subjects:
                        - kind: ServiceAccount
                          name: aap-integration-serviceaccount
                          namespace: open-cluster-management-agent-addon
            host: "{{ hub_url }}/local-cluster"
            api_key: "{{ token_acm }}"
            validate_certs: false
          with_items: "{{ target_clusters }}"
        - name: Check if token is created
          kubernetes.core.k8s_info:
            kind: Secret
            name: aap-integration-serviceaccount
            namespace: "{{ item }}"
            host: "{{ hub_url }}/local-cluster"
            api_key: "{{ token_acm }}"
            validate_certs: false
          with_items: "{{ target_clusters }}"
          register: secret_info
          until: secret_info is not failed
          retries: 10
          delay: 15
        - name: Create empty array
          set_fact:
            clusters_tokens: []
        - name: Fetch secret aap-integration-serviceaccount
          kubernetes.core.k8s_info:
            api_version: v1
            kind: Secret
            namespace: "{{ item }}"
            name: "aap-integration-serviceaccount"
            api_key: "{{ token_acm }}"
            host: "{{ hub_url }}/local-cluster"
            validate_certs: false
          register: secret_result
          with_items: "{{ target_clusters }}"
        - name: Extract and decode token
          set_fact:
            clusters_tokens: "{{ clusters_tokens + [clusters] }}"
          vars:
            clusters:
              cluster_name: "{{ item }}"
              token: "{{ secret_result.results[0].resources[0].data.token | b64decode }}"
          with_items: "{{ target_clusters }}"
        # Include your specific tasks here
        - name: Your custom operations
          include_tasks: "tasks/your-custom-task.yaml"
          vars:
            cluster_name: "{{ item }}"
          loop: "{{ target_clusters }}"
      always:
        - name: Delete ManagedServiceAccount
          kubernetes.core.k8s:
            state: absent
            definition: |
              apiVersion: authentication.open-cluster-management.io/v1beta1
              kind: ManagedServiceAccount
              metadata:
                name: aap-integration-serviceaccount
                namespace: "{{ item }}"
            host: "{{ hub_url }}/local-cluster"
            api_key: "{{ token_acm }}"
            validate_certs: false
          with_items: "{{ target_clusters }}"

Important notes about this example:

• Uses host: "{{ hub_url }}/{{ cluster_name }}" to access the specific managed cluster
• Uses api_key: "{{ clusters_tokens | selectattr('cluster_name', '==', cluster_name) | map(attribute='token') | first }}" to get the correct token for the cluster
• Performs operations directly on the managed cluster using the generated token

Here’s an example of a task that can be executed on managed clusters using the multicluster authentication:

---
- name: Get jobs completed in "Failed" status {{ cluster_name }}
  kubernetes.core.k8s_info:
    api_version: batch/v1
    kind: Job
    namespace: "{{ namespace }}"
    host: "{{ hub_url }}/{{ cluster_name }}"
    api_key: "{{ clusters_tokens | selectattr('cluster_name', '==', cluster_name) | map(attribute='token') | first }}"
    validate_certs: false
  register: failed_jobs
- name: debug jobs Failed {{ cluster_name }}
  debug:
    msg: "{{ item.metadata.name }}"
  with_items: "{{ failed_jobs.resources }}"
  when: item.status.conditions | selectattr('type', 'equalto', 'Failed') | selectattr('status', 'equalto', 'True')

Summary for Ansible Automation Platform playbooks

Here are the key points you need to remember:

1. Vault integration: Use vars_files to include your encrypted vault with credentials
2. Cluster login: Authenticate with Red Hat Advanced Cluster Management hub using the stored credentials
3. Dynamic token generation: Create ManagedServiceAccount for each target cluster
4. Token retrieval: Extract the generated token for each cluster
5. Cluster operations: Use the cluster-specific token to perform operations
6. Cleanup: Always clean up ManagedServiceAccount resources after use

Workflow integration

With the automation controller, you can create a job template that references vault credentials, executes your playbook against multiple clusters, and handles authentication automatically through Red Hat Advanced Cluster Management integration.

Troubleshooting multicluster authentication

As you set up multicluster authentication, you might need to test and diagnose parts of the process as you go. Here are some of the common components to watch:

• Verify that ManagedServiceAccount and Cluster Proxy are enabled
• Check token validity and permissions
• Ensure that the Cluster Proxy URL is accessible
• Review Ansible Automation Platform and Red Hat Advanced Cluster Management logs for authentication errors

Security best practices

Keep your clusters safe. Before your configuration goes live, make sure to:

• Use short-lived tokens when possible
• Regularly rotate authentication tokens
• Monitor authentication logs
• Follow the principle of least privilege for ServiceAccount permissions

Conclusion

This multicluster authentication setup provides a robust and scalable solution for managing authentication across multiple Kubernetes clusters. By leveraging the ManagedServiceAccount and ClusterProxy features of Red Hat Advanced Cluster Management, you can:

• Eliminate credential proliferation by centralizing authentication through the Red Hat Advanced Cluster Management hub
• Enhance security by using dynamic, short-lived tokens instead of long-lived credentials
• Simplify operations by managing authentication from a single point of control
• Scale efficiently as new clusters are added without requiring additional credential management
• Reduce attack surface by eliminating the need to store cluster credentials in Ansible Automation Platform

The integration between Ansible Automation Platform and Red Hat Advanced Cluster Management creates a powerful automation platform that can manage and operate across multiple clusters while maintaining strict security controls and audit trails.

References

• Red Hat Advanced Cluster Management
• Ansible Automation Platform
• Example manifests

The post Multicluster authentication with Ansible Automation Platform appeared first on Red Hat Developer.
